10.5″ Slim Medical Tablet PC | MW-100M

Certifications products
mw_100m
arrow
arrow

Highlights

  • MW-100M | First EU Cybersecurity-Certified Medical Tablet PC
  • Designed for all kinds of medical and healthcare applications. EN-60601-1 & EN-60601-1-2 Medical Certified. IP66 waterproof rating, drop/shock protection (MIL-STD-810H standard) and sunlight readable LCD ensure it thrives in field service, construction, public safety, emergency services, manufacturing, industrial settings, healthcare, logistic and many more. With our ODM and OEM services, you can customize the MW-100M with optional features like a 2D barcode scanner, 4G LTE, RFID, CAC card reader, and many more. Choose the MW-100M for unparalleled reliability and versatility.

Features

  • EN-18031 EU Cybersecurity Certified
  • 10.5″ LCD Display (1920 x 1280 Resolution)
  • EN-60601-1 & EN-60601-1-2 Medical Certified
  • Slim Rugged design, weights only 800g
  • Intel® Processor N200, Windows 11 Pro/IoT OS
  • Sunlight Readable LCD Display (600 nits)
  • IP66 Water & Dust Protection
  • 5ft Drop / Shock Protection (MIL-STD-810H)
  • Intel® Wi-Fi 6E AX210, Bluetooth 5.2, Optional 4G LTE
  • Optional: Barcode Reader, SIM Slot
  • ODM Options: RFID or High Precision GPS Module Via Pogo-Pin Expansion Slot
MW-100 Datasheet
$1,250.00
delivery
in 2 ~ 4 week
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION

Slim but Rugged Design for Maximum Portability and Durability

Combining sleek design with rugged toughness, the MW-100M features a slim profile with a thickness of only 11.6mm, making it portable and easy to carry without compromising durability. Its lightweight yet resilient build is ideal for industries such as construction, public safety, and logistics, offering full rugged functionality while maintaining easy handling.

Unmatched Performance with Intel® Alder Lake N200 Processor

Boost your productivity in the field with the MW-100M Slim Rugged Tablet PC, powered by the latest Intel® Alder Lake N200 processor, delivering a max turbo frequency of 3.7GHz and 6MB Intel® Smart Cache. Combined with 8GB LPDDR5 memory and 128GB flash storage, this rugged tablet ensures smooth multitasking and reliable performance, even in the most demanding environments like construction, logistics, and healthcare.

Rugged Tablet PC MW-100
Rugged Tablet PC MW-100

Versatile Operating Systems: Windows 11 Pro & IoT

Choose between Windows 11 Pro or IoT operating systems for a customized experience tailored to your business needs. Whether you require the latest Windows features or the security and scalability of IoT, the MW-100M is designed to support a wide range of applications, offering flexibility and seamless integration with your existing systems.

Rugged and Ready for the Field

The MW-100M is built for tough environments, featuring IP66-rated water and dust protection and MIL-STD-810H certification for shock and vibration resistance. It can survive drops up to 5ft and is designed to thrive in extreme temperatures from -10°C to 50°C, making it ideal for field service, construction, and industrial settings.

Rugged Tablet PC MW-100
Rugged Tablet PC MW-100

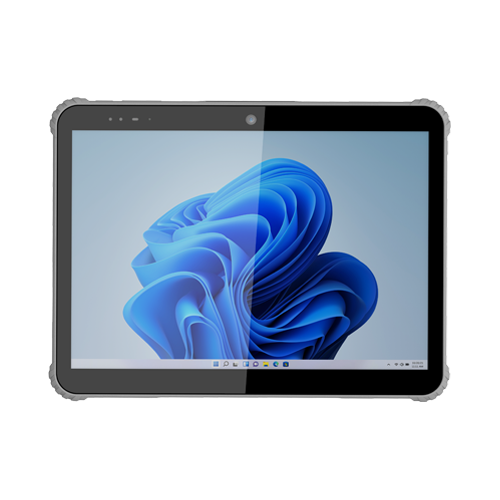

Sunlight-Readable Display and Impact Protection

With its 10.5″ sunlight-readable IPS LCD display, delivering 1920 x 1280 resolution and 600 nits brightness, the MW-100M ensures clear visibility in bright outdoor conditions. The display is protected by chemically hardened glass, providing impact resistance and durability for rough handling in the field.

Advanced Connectivity Options

Stay connected in any environment with Intel® Wi-Fi 6E and Bluetooth 5.2 for fast, reliable communication. Optional 4G LTE ensures uninterrupted connectivity when working in remote areas. The MW-100M also features multiple I/O ports, including 2 USB-C ports (charging, USB 3.1, display), a 14-pin docking connector, and an optional 17-pin PoGo pin connector for additional expansion and external battery support.

Rugged Tablet PC MW-100
Rugged Tablet PC MW-100

Extended Battery Life for Nonstop Productivity

Maximize your uptime with the MW-100M’s long-lasting 2S1P 7.6V 4100mAh (31Wh) battery. The device supports continuous use with a magnetic charging connector and optional external battery support, ensuring you stay powered throughout your shifts, even during demanding field operations.

Built-in 2D Barcode Scanner for Efficient Inventory and Asset Management

With an optional built-in 2D barcode scanner, this rugged tablet MW-100M is a perfect solution for industries such as retail, logistics, healthcare, and field service. Integrated directly into the tablet, this scanner allows for quick and accurate scanning of barcodes and QR codes, streamlining processes such as inventory management, patient tracking, and asset monitoring. By eliminating the need for separate scanning devices, it improves workflow efficiency while keeping the device compact and easy to carry. Ideal for professionals who need reliable data capture on the go, the built-in 2D barcode scanner offers added functionality without compromising the tablet’s portability.

Rugged Tablet PC MW-100
Rugged Tablet PC MW-100

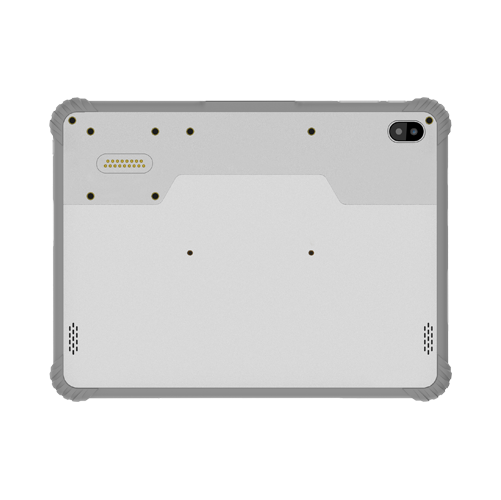

Rear External Interface for Easy Expansion and Customization

The MW-100M offers a rear external expansion slot, allowing users to easily add modules like RFID and high-precision GPS for enhanced functionality. This feature makes the tablet highly adaptable, catering to various industry-specific needs. Customization ensures the MW-100M grows with your business.

SPECIFICATIONS

RUGGEDNESS

IP Rating
IP66
Drop Rating
MIL-STD-810H, Method 516.8, Procedure IV
Shock Rating
MIL-STD-810H, Method 516.8, Procedure I
Vibration Rating
MIL-STD-810H, Method 514.8, Procedure I

SYSTEM

Processor
Intel® Processor N200, Max Turbo Frequency 3.7GHz,
6 MB Intel® Smart Cache
GPU
Intel® UHD Graphics, Max Dynamic Frequency 750MHz
Memory
8GB LPDDR5
Storage
128GB Flash Memory
OS
Windows 11 64-bit Pro/IoT
Security
TPM 2.0

DISPLAY

Screen Size
10.5” IPS LCD
Resolution
1920 x 1280
Brightness
600 nits
Contrast Ratio
1500:1
Touch Screen
Capacitive 10-Point Multi-Touch
Top Glass
Chemically Hardened Glass for Front Impact Resistance

COMMUNICATIONS

Wi-Fi
Intel® Wi-Fi 6E AX210
Bluetooth
Bluetooth 5.2
4G LTE (Optional)
4G LTE Module with M.2 Interface

POWER

AC Adapter
110-220V AC input, 12V/3A DC output, Magnetic Connector
Battery
2S1P 7.6V 4100mAh (31Wh)

I/O INTERFACE

Sensors
G-sensor, Light Sensor
Audio
2 x Speakers
1 x Built-in Mic
Camera
Front Camera: 5MP
Rear Camera: 13MP with Auto Focus
Ports
2 x USB C Ports (Charging / USB 3.1 / Display)
1 x 14 Pin Docking Connector (Support USB 2.0 & Charging)
Magnetic Charger Jack
Optional
1 x 17 Pin PoGo Pin Connector on Rear Chassis (Support USB 2.0 and External Battery)
1 x SIM Slot
Buttons
Power On/Off Button (Hold 10s will Reset the System)
Volume+/- Button
1 x Programmable Button
Barcode Scanner (Optional)
Built-in 2D Barcode Scanner

MECHANICAL

LED
1 x Charging Indicator, 1 x Power Indicator
Dimensions
246.6 x 185.6 x 11.6mm
Weight
800g
Screw Specifications
M2.5 Type

ENVIRONMENTAL

Operating Temperature
-10°C to 50°C
Storage Temperature
-20°C to 60°C
Humidity
10% to 90% Non-condensing

REGULATORY

Certification
FCC, CE, IATA
Medical Certification
CONFIGURATION
